Units = MM

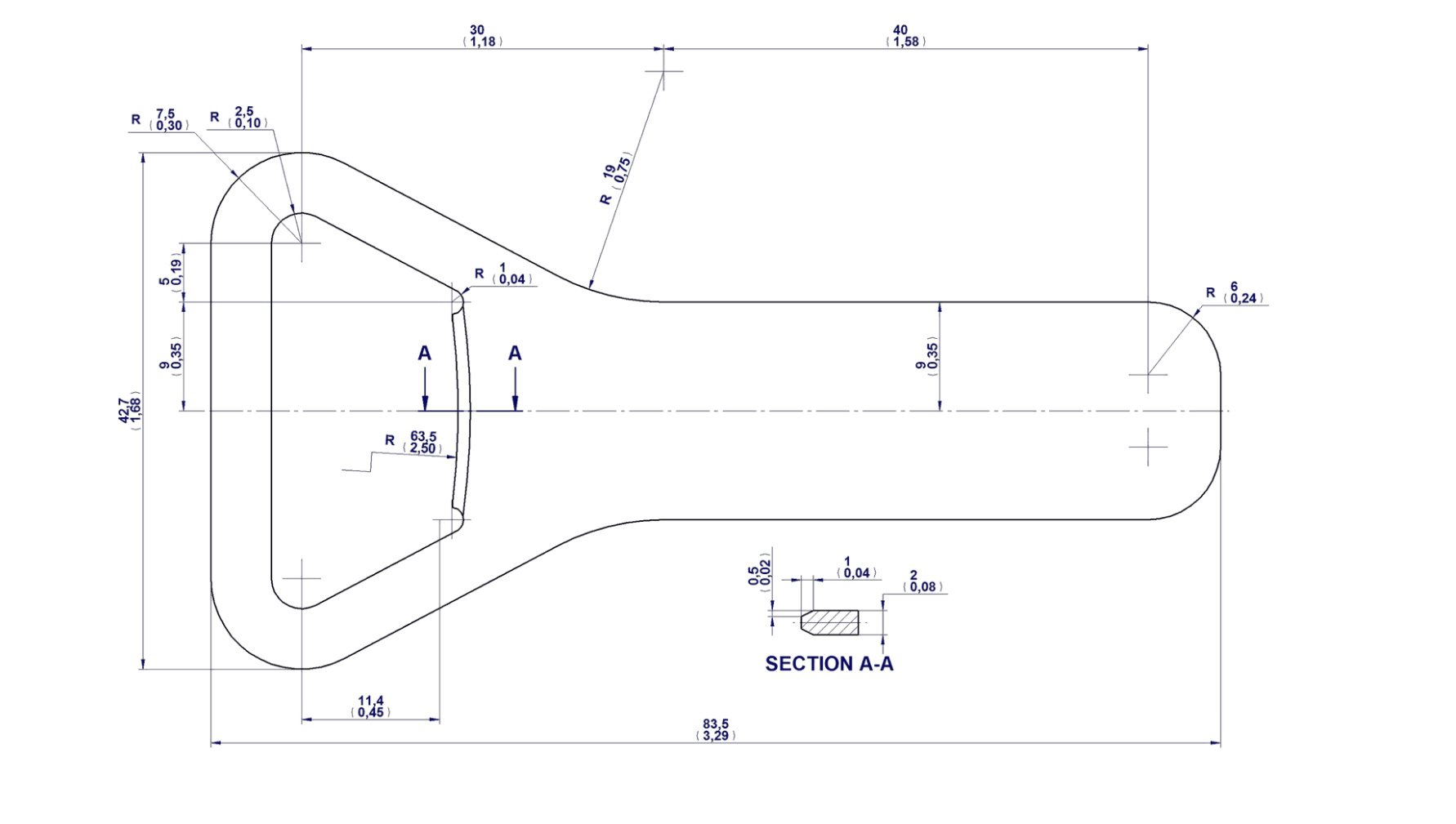

Bottle Opener 6

1. Set Active Units = mm
2. Draw a horizontal line (above the point of origin) the overall length of the opener = 83.5 mm
3. Then from the constraints pull down menu, select the midpoint constraint
4. Select the line and then the point of origin
   • The midpoint of the line will now be coincident with the point of origin
   • The line will become fully defined and turn black

•

•

1. Draw a vertical line = 26.521 mm
2. Draw a vertical line = 9 mm
3. Draw a horizontal line = 50.76495
4. Draw the angled line

•

•

1. Draw a horizontal construction line = 11.87075
2. Draw a vertical construction line = 18.38323 mm
3. Select D for dimension, set the distance between the vertical lines = 5 mm
4. Draw the angled line

•

•

1. Fillet the outside corner = 7.5 mm
2. Fillet the inside corner = 2.5 mm
3. Fillet the large outside corner = 19 mm
4. Fillet end = 6 mm

•

•

•

1. Start the Mirror command
2. Select lines to mirror
3. Select the mirror line

•

•

1. Zoom in
2. Draw a horizontal line = 1.96431
3. Draw a tangent circle
4. Mirror the circle

•

•

1. Under the Create pull down menu, select 3-point arch
2. Draw a 3- point arch between centers
3. Dimension arc = 63.5 mm
4. Change line type

•

•

1. Finish Sketch
2. Extrude 1mm

•
